6200 Light Series Ball Bearing -- 6201 2RSC3 Bearing Datasheet
1. Specifications:
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Item: 6201 Bearing
Type: Single row deep groove ball bearings
SKU: 6201Bearing
Inner Ring Diameter (bore): 12mm
Inner Ring Tolerance: 0~-10µm
Outer Ring Diameter: 32mm
Outer Ring Tolerance: 0~-13µm
Width: 10mm
Clearance: 0~10µm
Basic Dynamic Load Rating Cr: 6.8 kN
Basic Static Load Rating Cor: 3.05 kN
Grease Lubrication: 22000
Oil Speed: 28000
This bearing coms in both a sealed and a shielded version. Please select between the two below. Select 2RS for a sealed bearing or ZZ for a shielded bearing.
This bearing can be found with the following part numbers on it: 6201-2RS, 6201 2RS, 6201 RS, 6201RS, 6201-ZZ, 6201 ZZ, 6201ZZ, 6201 Z
2. Applications:
The 6201-2RS and 6201-ZZ is a 12mm ball bearing that is found in many applications. The 6201-2RS ball bearing has two contact rubber seals one on each side of the ball bearing. The 6201-ZZ ball bearing has two non-contact metal shields one on each side of the ball bearing. If your application requires a 6201 ball bearing with only one seal or shield you can get this ball bearing and take one of the shields or seals off. This 12mm inch ball bearing is high quality and can take electric motor demands if needed.
3. Related 6000 Series Deep Groove Ball Bearing Catalogue:
N0.
Bore
O.D
Width
Chamfer
Load Rating
Maximuum Seed
Weight
mm
mm
mm
mm
Dynamic
Cr
Static
Cor
Grease
r/min
Oil
r/min
Kg/pcs
604 bearing
4
12
4
0.2
0.97
0.36
36000
44000
0.0021
605 bearing
5
14
5
0.2
1.33
0.505
32000
40000
0.0035
606 bearing
6
17
6
0.3
2.19
0.865
30000
38000
0.006
607 bearing
7
19
6
0.3
2.24
0.91
28000
36000
0.008
608 bearing
8
22
7
0.3
3.35
1.4
26000
34000
0.012
609 bearing
9
24
7
0.3
3.4
1.45
24000
32000
0.014
6000 bearing
10
26
8
0.3
4.55
1.96
22000
30000
0.019
6001 bearing
12
28
8
0.3
5.1
2.39
19000
26000
0.021
6002 bearing
15
32
9
0.3
5.6
2.83
18000
24000
0.03
6003 bearing
17
35
10
0.3
6.8
3.35
17000
22000
0.039
6004 bearing
20
42
12
0.6
9.4
5.05
15000
19000
0.069
6005 bearing
25
47
12
0.6
10.1
5.85
14000
18000
0.08
6006 bearing
30
55
13
0.6
13.2
8.3
12000
15000
0.116
6007 bearing
35
62
14
1.0
16
10.3
10000
14000
0.115
6008 bearing
40
68
15
1.0
16.8
11.5
8000
11000
0.19
4. Related 6200 Series Deep Groove Ball Bearing Catalogue
Ball Beaing Part Number
Boundary Dimension(mm)
Basic Load Rating(kN)
Limiting Speed(rpm)
Mass
(KG)
Open
Shielded
Sealed
d
D
B
rsmin
Cr
Cor
Grease
Oil
6200ZZ bearing
ZZ
DDU
10
30
9
0.3
5.1
2.39
24000
29000
0.032
6201ZZ bearing
ZZ
DDU
12
32
10
0.6
6.8
3.06
22000
27000
0.037
6202ZZ bearing
ZZ
DDU
15
35
11
0.6
7.65
3.72
20000
24000
0.045
6203ZZ bearing
ZZ
DDU
17
40
12
0.6
9.55
4.79
17000
21000
0.066
6204ZZ bearing
ZZ
DUU
20
47
14
1
12.8
6.55
14000
18000
0.106
6205ZZ bearing
ZZ
DDU
25
52
15
1
14.4
7.8
12000
16000
0.128
6206ZZ bearing
ZZ
DDU
30
62
16
1
19.5
11.31
9500
1300
0.199
6207ZZ bearing
ZZ
DDU
35
72
17
1.1
25.7
15.2
8500
11000
0.288
6208ZZ bearing
ZZ
DDU
40
80
18
1.1
29.5
18
8000
10000
0.366
6209ZZ bearing
ZZ
DDU
45
85
19
1.1
31.5
20.5
7000
9000
0.398

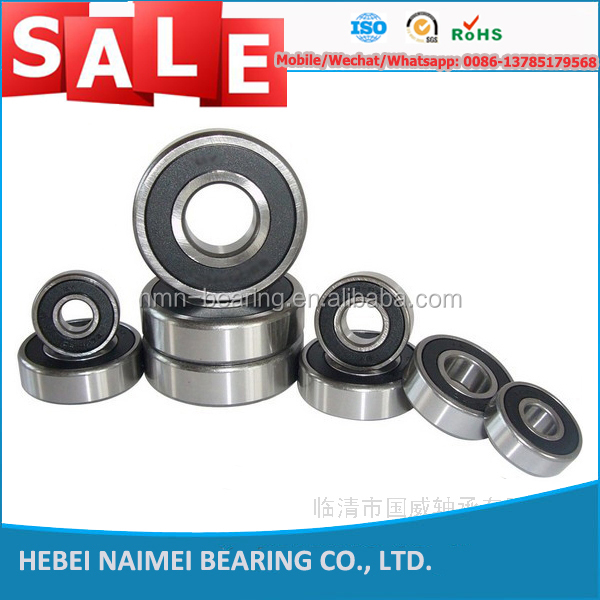

5. NAIMEI BEARING DEEP GROOVE BALL BEARING SHOW
6. NAIMEI BEARING FACTORY PROFILE
Hebei Naimei Bearing Co., Ltd. is a specialized manufacturer of ball bearings for about 20 years. Our main products include:
2. Deep Groove Ball Bearings: like 6000, 6200, 6300, 6800, 6900, 16000 Series;
3. Non-Standard Bearings: U grooved bearings, V grooved bearings, double grooved bearings, bearing rollers with or without plastic injection
7. WHY CHOOSE US?- HEBEI NAIMEI BEARING CO., LTD.
√ OEM Service: We are a company specialized in producing deep groove ball bearing & miniature bearings & plastic bearing rollers. We produce in accodance with customers' samples or drawings or applications. Customers' brand is available on the bearings.
√ Authentications: Our products hae passed related authentications and have been widely adopted and favored by domestic and overseas customers.
√ Lead Time: To save lead time, the production, inspection and packaging is doing at the same time.
√ Machining Workshop: We keep introducing advanced equipment from Germany to meet customers' requirements for precision and production capacity.
